Payment & Shipping Terms:
|Product Name:||Copper Wire Granulator||Capacity:||100-150 Kg/h|
copper cable granulator machine,
copper wire granulator

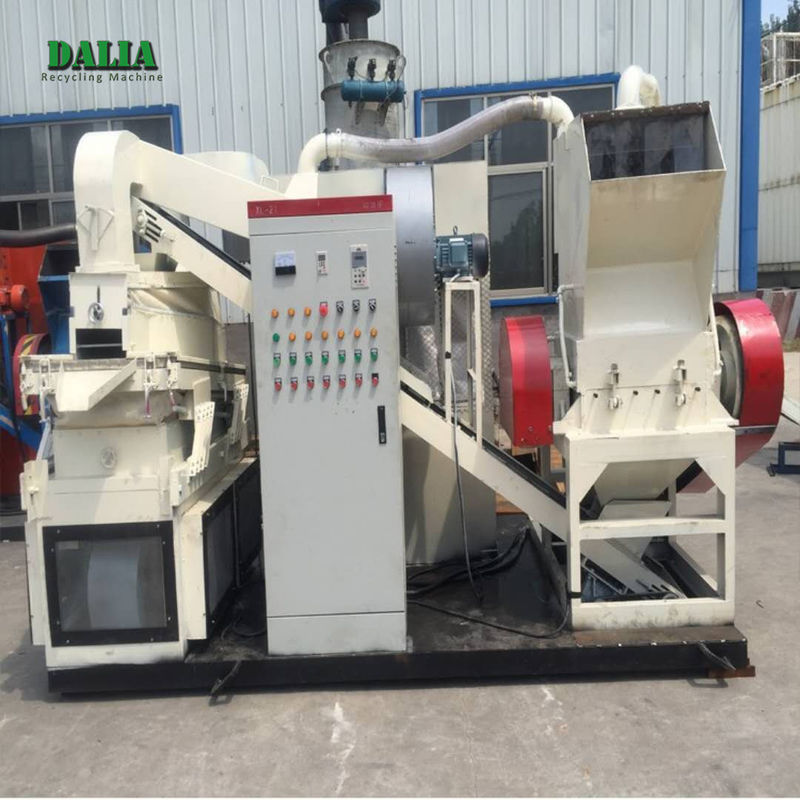

Small Copper Wire Granulator Machine Scrap Wire Shredder 99.9% Recovery Rate
Copper wire Recycling Machine Working principle:
1. Put wires and cables into the crusher, in which they are crushed and plastic sheath and copper separated completely. The length of the crushed material is based on the mesh of the riddle: the bigger the mesh is the longer the crushed material will be and the larger the output will be. The mesh should be chosen in production according to the type of the material.
2. The crushed material (mixture of copper granules and plastic pieces) is conveyed to the separator by the conveyor, during which procedure dust and part of plastic pieces of light weight(including fiber, rope, or tapes, etc. mixed in the wires) are collected by the pressure-reducing blower. The above opening of the pressure reducing blower is connected with the dust collector opening in which a dust collecting bag is used to prevent discharge of dust for the purpose of environmental protection. Dust and part of plastic pieces of light weight are collected in this bag and will be discharged when the bag is full.
3. The separator is used for separating plastic pieces and copper granules. According to the differences of the physical properties and specific gravity between different materials, there is specific gravity deviation under the forces of Aerodynamic and Vibration friction. By adjusting the speed of material conveying and amplitude parameters, copper granules (of larger specific gravity) will move to the riddle bottom and move from down to up, and plastic pieces (of smaller specific gravity) will move to the above of copper granules and move from up to down, and in the end they will both be discharged through different openings.
4. All the units are installed on the Underbed to form a whole structure. The machine is adjusted ready for production before shipping, and the customer only need to connect it to the power supply.
Copper wire Recycling Machine Features:
DLA-400(capacity:150-200kg/h) is suitable for middle size factory. It finishes the complete recycling process in closed structure to avoid pollution and noise. Crushed copper wire go through the high pressure fan, and dust inside will be cleaned and finally vibrating separator will take out clear copper and plastic pellet from different exit.
Raw materials and output
About Zhengzhou Dalia Import Export Co.,Ltd
Zhengzhou Dalia Import Export Co.,Ltd. was found in 2002s in Gongyi City, Henan Province. It is a factory which has been specially design environmental recycling machines. In order to recycle wastes cars, plastic wastes, glass wastes, metal scraps, my factory designs all kinds of crusher shredder; and for recycling electricity wire/cables, my factory designs copper wire recycling machine.
Packaging and shipping
1. By wooden box of international exporting and importing standard
2. Superial plastic material wrapped in the container
3. Packed as customer's requirements.
4. Loading Port:Qingdao,tianjin,shanghai,ningbo, any port of China
5. Discharge Port: nearest of customer's densitation,as buyer's requirements
Contact Person: Bai
